DHK327-30 Customized through hole pancake slip ring 327mm large pore size
Pancake slip ring is a slip ring that is used in limited height space and expands the lateral space to meet the requirements of special space series. The typical characteristics are small height and large outer diameter, like a plate, so it is called a disc slip ring. The contacts are made of precious metals, which have the characteristics of high stability, low torque, low loss and maintenance-free, low electrical noise, and super long service life.

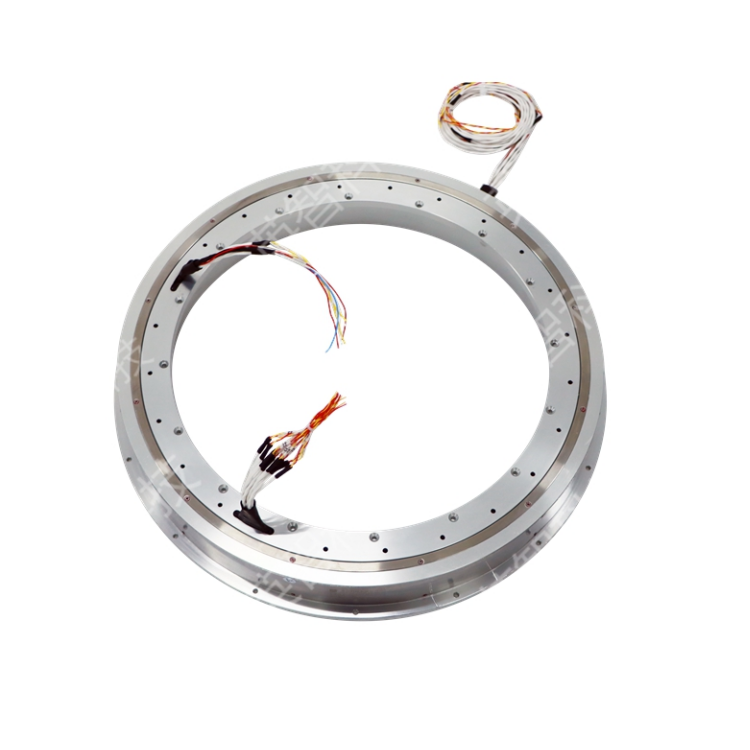

DHK327-30 series large pore size through hole pancake slip ring, through hole diameter 327mm, number of channels: 30, an integral precision conductive slip ring with an all-aluminum alloy structure. Supports signal (2A) or 10A, 15A, 30A power supply current, voltage 380VAC/24VDC, working voltage can be customized to 1000V; protection level can be customized to IP65/IP68.
- The thinnest thickness can reach 15.8mm
- The disc-type conductive slip ring adopts a special vacuum infusion process
- The shrapnel contacts are made of precious metals, which have high stability and reliability.
Mainly used in occasions with strict restrictions on installation height, requiring 360-degree continuous rotation and ensuring that power supply, digital signals, and analog signals cannot be interrupted: such as revolving doors, medical CT, security inspection equipment, and other industrial automation equipment, intelligent manufacturing equipment, and welding Robots etc.
|
DHK327-30 |
|||
|
The main parameters |
|||
| Number of circuits | 30 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance. Comprehensive quality management system, strict management in all aspects of design, manufacturing, testing, etc., to ensure the use of materials, coupled with high-precision imported equipment and high-tech technology to ensure.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
