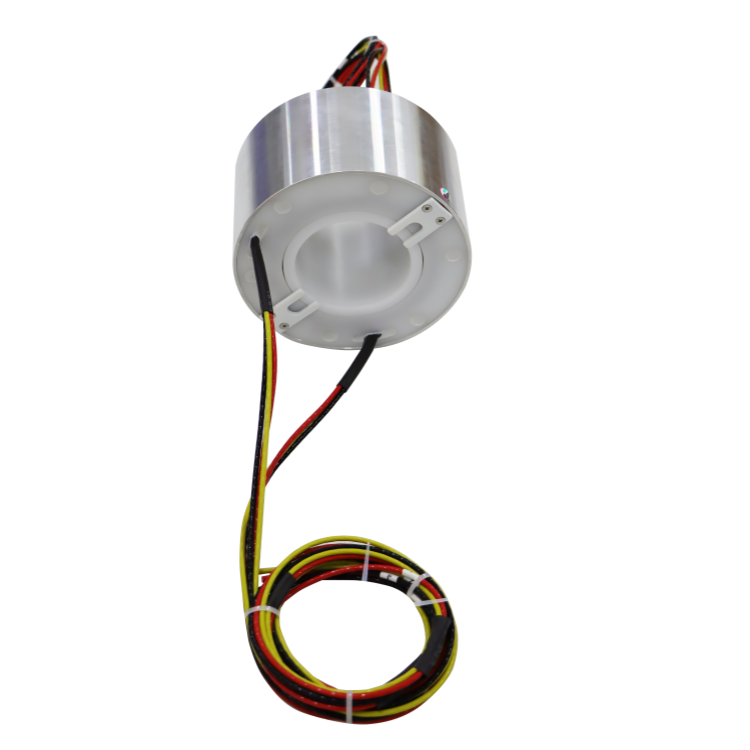

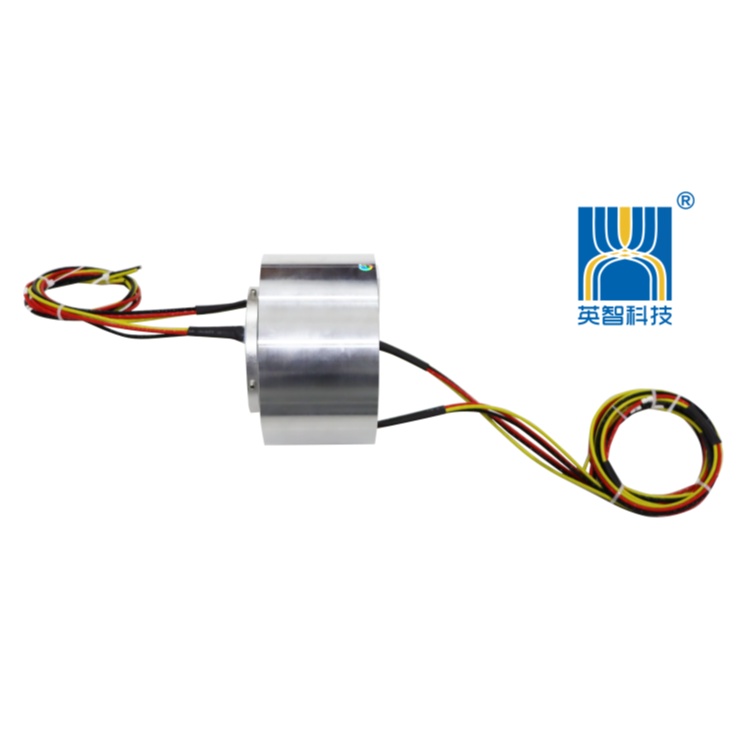

DHK070-6-20A 70mm through hole slip ring 6 channels 20A maintenance-free
DHK070-6-20A is an economical through hole slip ring. The diameter of the through hole is 70mm and the outer diameter is 145mm. It adopts brush contact technology and multi-point contact to ensure stable contact. Low pressure, low friction, low loss, maintenance-free and lubrication-free, long service life.
Features
- Unique contact design provides longer life and maintenance-free stable operation (no lubricant required)
- Modular design to meet higher current, speed, appearance and other needs
- Diversified appearance to support more installation requirements
- Support signal, power and their mixed transmission
- Can support 1-126 channel expansion
- Can meet the requirements widely used in current industrial fields
Application areas
- Industrial machines: machining centers, winding machines, end-face processing machines
- Rotary workbench: battery machinery, filling machine, bottle blowing machine, rotary printing machine
- Cable drum: port machinery, heavy-duty boom, construction machinery, tower
- Test equipment: centrifugal test bench, separator
- Robots: packaging equipment, stackers, process control equipment, emergency lighting equipment
- Exhibition/display equipment: car booths, revolving doors, product booths, revolving restaurants
- Medical equipment: shadowless surgical light
|
DHK070-6-20A |
|||
|
Main Parameters |
|||
| Number of circuits | 6 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
