DHK012-6-10A Ingiant Standard hole diameter 12mm series through hole slip ring 12 channels 10A
DHK012-6-10A series through hole slip ring
Through-hole diameter 12mm (applicable to any outer diameter: 56mm; number of channels: 6, integrated precision conductive slip ring with all-aluminum alloy structure. Supports signal (2A), 10A power supply current, voltage 0~440VAC/240VDC, working voltage can be customized to 1000V; protection level can be customized to IP68.
Product Features
- Multi-contact brush contact design, long service life
- Integrated structure design, easy installation
- 6 channels, 10A/channel
- IP 54 protection level, customizable IP68
- Can integrate multiple signals, compatible with multiple data protocols
- Maintenance-free use
Typical application
- rotating platform
- Packaging Machinery
- cable reel
- Drying and mixing equipment;
- Test Equipment
- Robotics and rotation sensors
- Booth equipment
- medical equipment
|
DHK012-6-10A |
|||
|
The main parameters |
|||
| Number of circuits | 6 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |

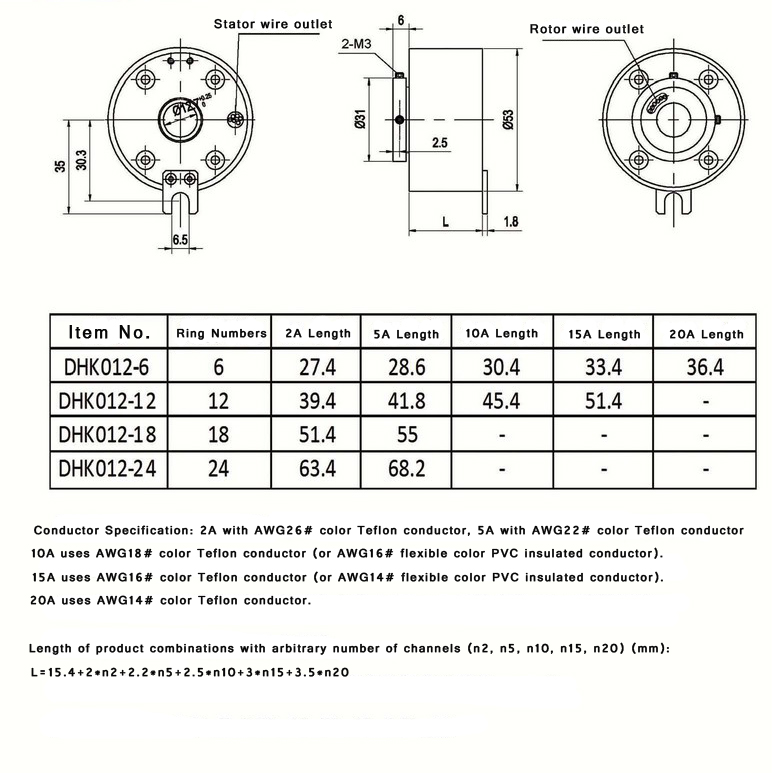

Standard product outline drawing:
Our Advantage
- Product advantage: continuous transmission of power, signals, weak current, high current, high voltage under 360 degree unrestrained rotations. Low torque, low electrical noise, low loss and easy maintenance as the main features.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
