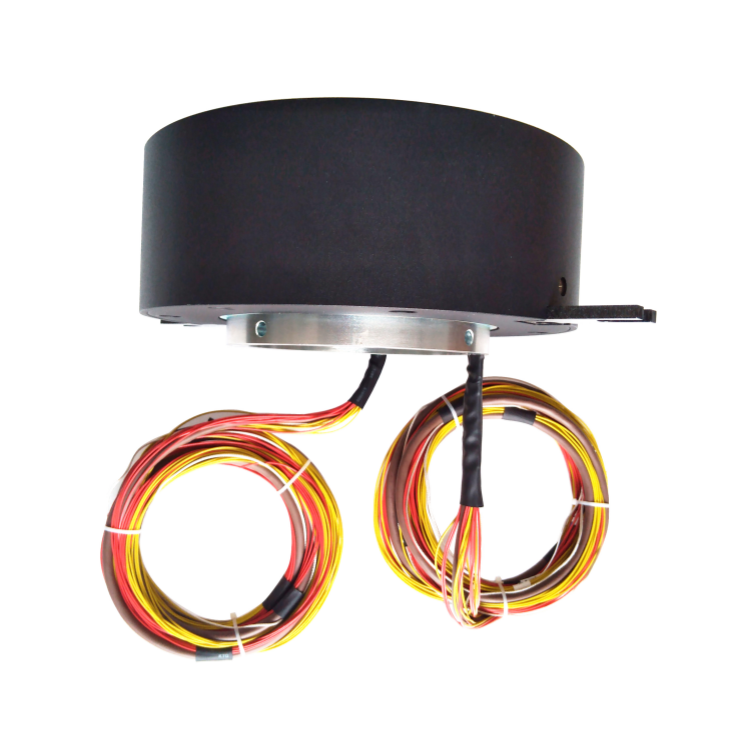

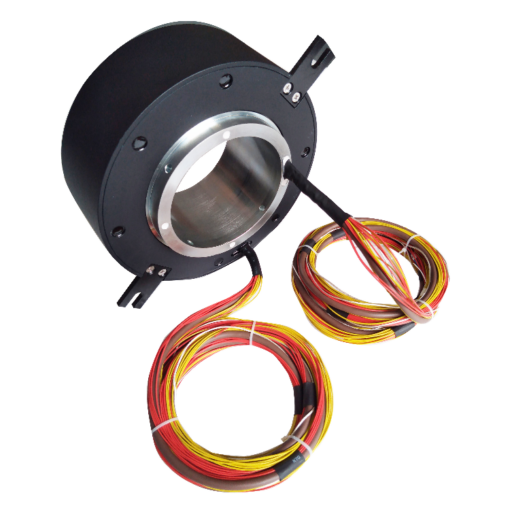

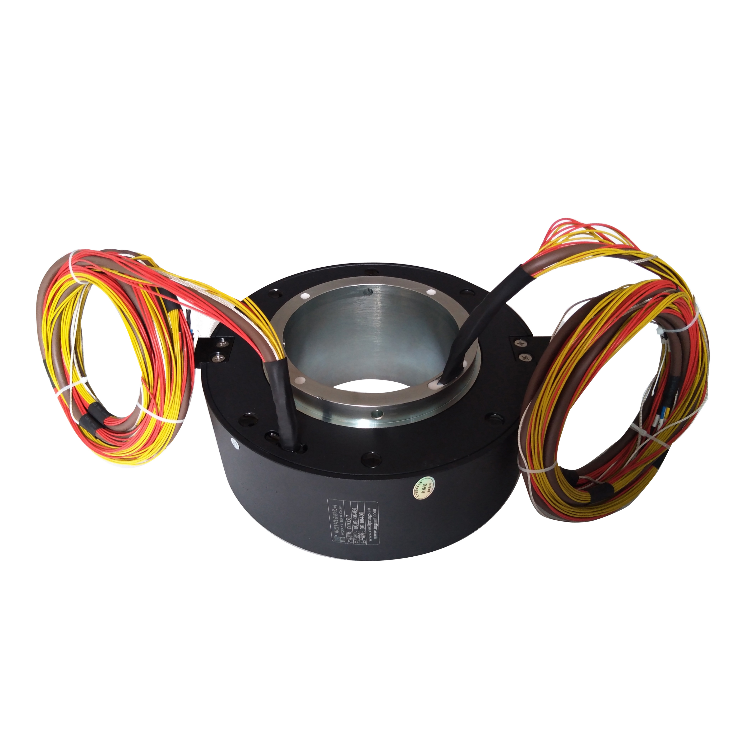

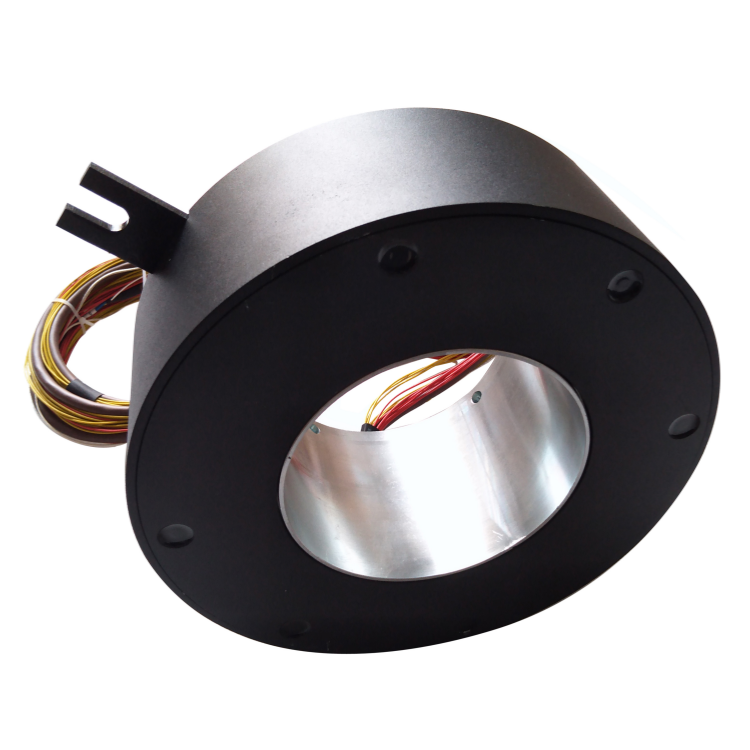

DHK150-7 standard series through hole slip ring hole diameter 150mm 7 channels power
DHK150-7 series through hole slip ring, through hole diameter 150mm
DHK150-7 is a standard series through hole slip ring, through hole diameter 150mm (applicable to any <=150mm), 7-channel power precision conductive slip ring. Support power 10A, magnification *10A, voltage 440VAC/VDC. High rotation accuracy, more stable performance, longer life. The contact material is made of precious metal + super-hard gold plating, with small torque, stable operation, long life, small resistance fluctuation, small contact resistance, and excellent transmission performance.
Typical applications include automation equipment, work turntables, camera pans, robots, etc.
Product features
- Integrate power, signal and data in a rotating transmission system without interference
- Transmit temperature control signal and thermocouple signal at the same time
- Brush bundle process ensures reliable contact and low friction coefficient
- Multi-contact brush contact design, long service life
- Integrated structure design, easy installation
- IP 54 protection level, customizable IP68
- Can integrate multiple signals, compatible with multiple data protocols
- Maintenance-free use
|
DHK150-7 |
|||
|
The main parameters |
|||
| Number of circuits | 7 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: DHK series perforated conductive slip ring is currently the most cost-effective industrial slip ring inside a best-selling series of products, in many cases also known as hollow shaft conductive slip ring, through the hole, through the hole conductive slip ring, hollow shaft slip ring. Mainly used in 360 degrees continuous rotation and need to ensure that the power supply, signal can not be interrupted:
- Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
