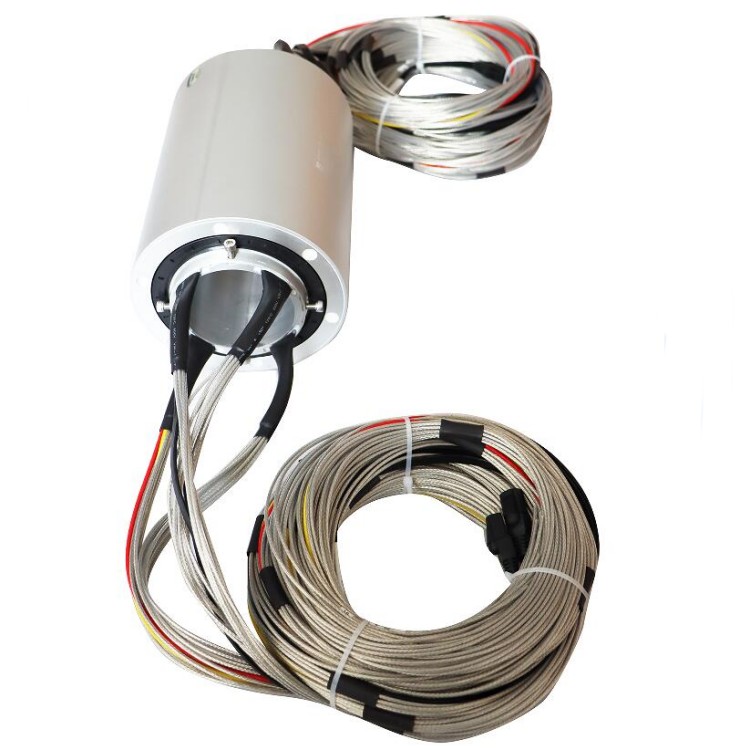

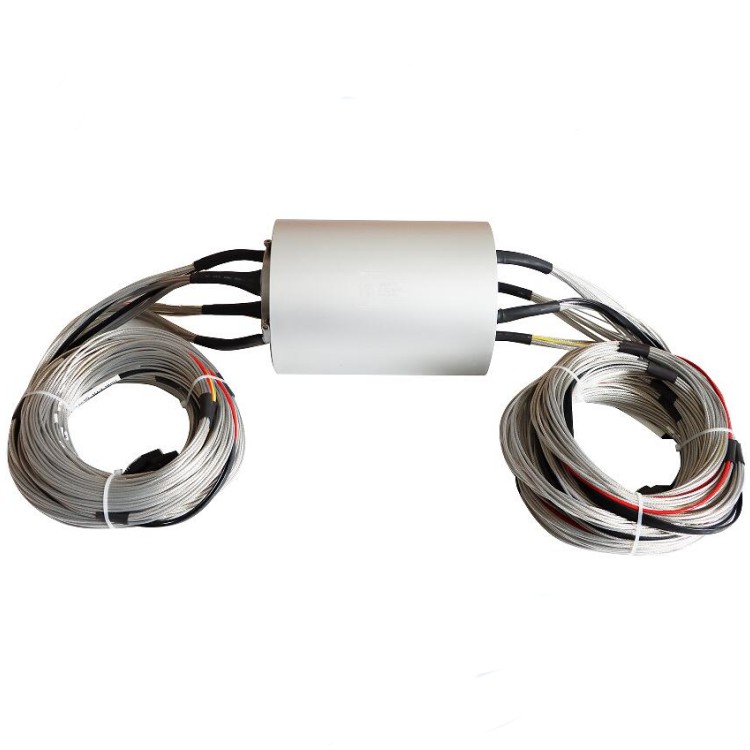

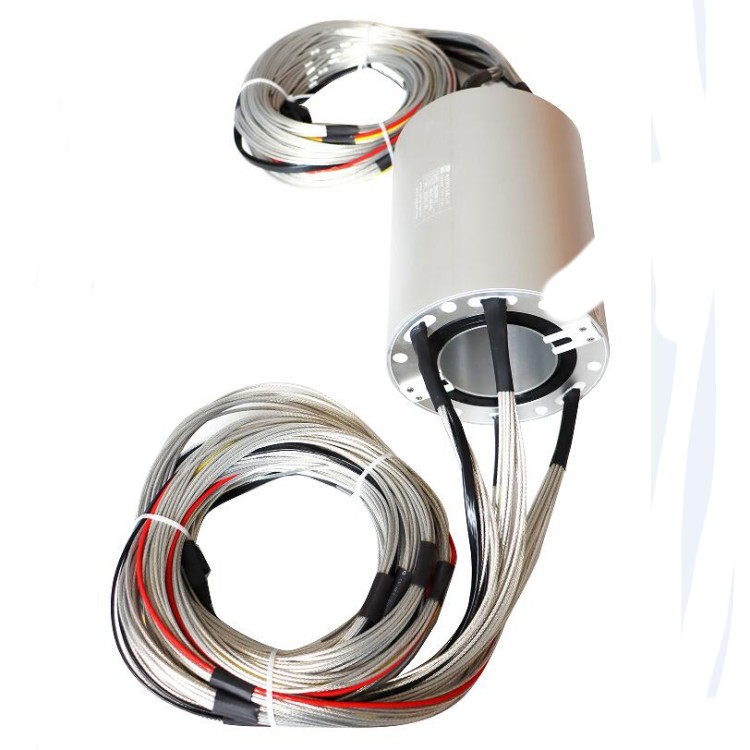

DHK080F-52 Integral precision through hole slip ring with a through hole diameter of 80mm
Through hole slip rings are also called shaft slip rings, precious metal slip rings, through hole collector rings, through-hole slip rings, hollow shaft slip rings, etc. This type of slip ring has a through hole in the center for easy installation of hydraulic, pneumatic, or transmission shafts. The through hole slip ring adopts a modular assembly method, which is convenient and quick to customize the current, voltage, central aperture, etc. according to customer requirements. The slip ring parts use standard components to reduce costs and improve productivity. It is currently the most widely used and most cost-effective Industrial conductive slip rings.
Ingiant through hole slip rings use precious metal fiber brush technology to provide reliable electrical contact at low friction and can be used for power transmission, and are more suitable for weak signal transmission!
Through hole slip ring
The through-hole slip ring can provide any path, transmit power, signal or multi-channel parallel to increase the carrying capacity, etc. It is widely used in security and automation equipment.
|
DHK080F-52 |
|||
|
The main parameters |
|||
| Number of circuits | 52 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our Advantage
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
