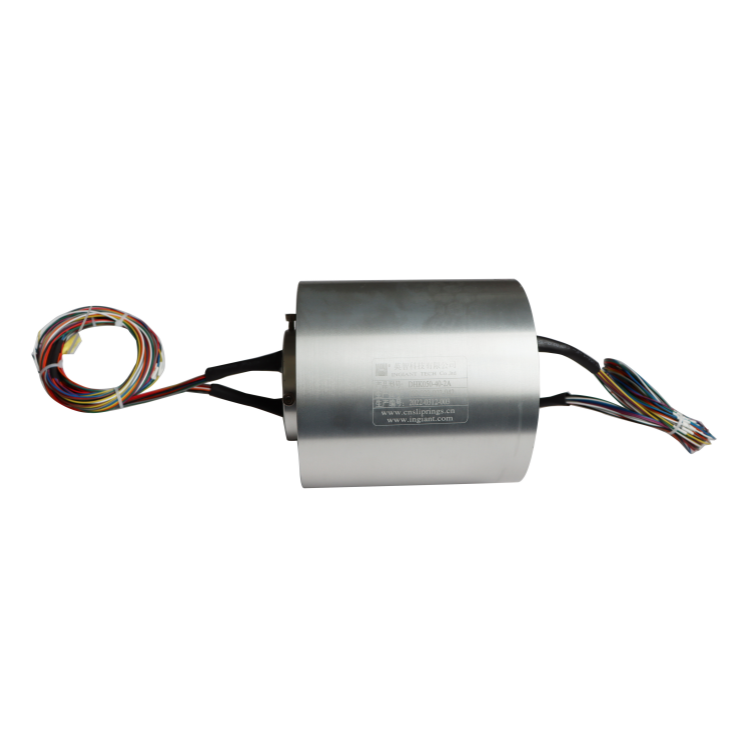

Standard hole diameter 50mm through hole slip ring 40 channels 2A

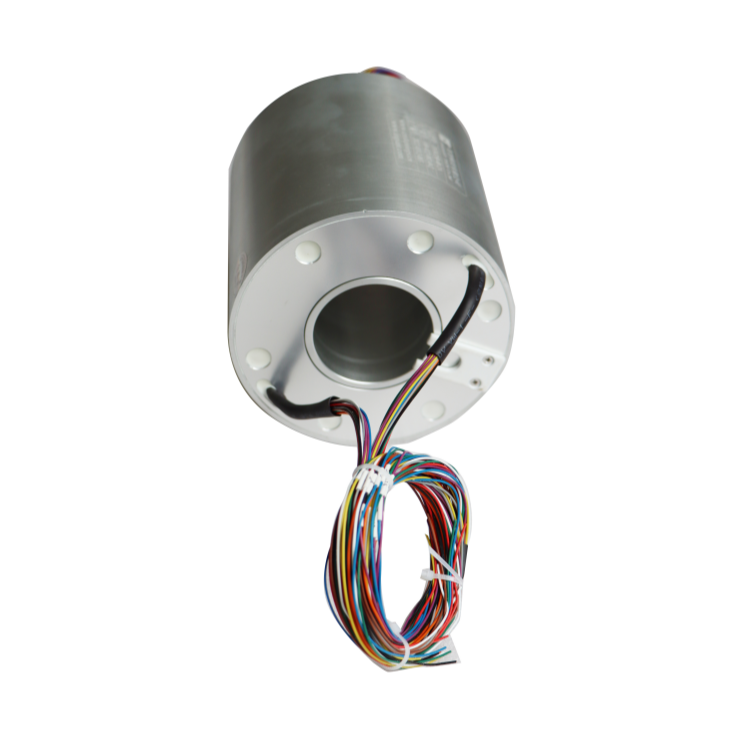

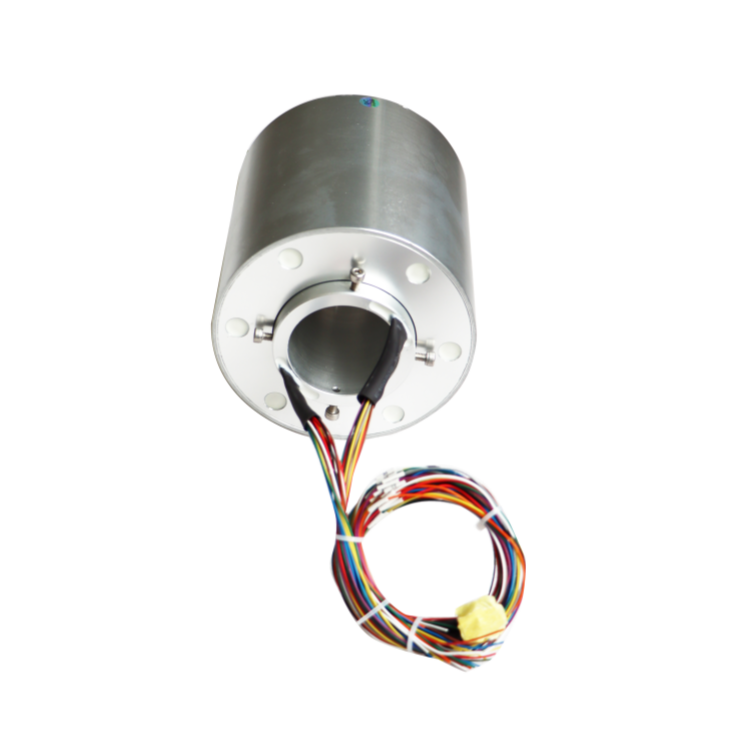

DHK050 is a standard through hole slip ring. There is a φ50mm through hole in the center of the shaft through which air pressure, hydraulic pipes or drive shafts can pass. Multi-contact precious metal fiber brush contact, long life design, precision double ball bearings, aluminum alloy shell, optional mounting flange. It has the characteristics of reliable operation, low driving torque, low electrical noise and small size.
Features
- Modular design
- The signal current can pass through the same slip ring
- Up to 2500 rpm (optional)
- No maintenance required
- It adopts advanced precious metal cluster brush multi-point contact to ensure reliable contact under extremely low friction;
- It can stably transmit 1~72currents/signals,
- A variety of standard specifications can be customized upon request;
- Can mix and transmit video, data and other signals, and supports mixed transmission of signals and power;
- Integrated structural design, easy to install.
Application
- Rotating platform, test equipment, cable drum;
- Robots and rotation sensors
- Booth equipment;
- Medical equipment
|
DHK050-40-2A |
|||
|
The main parameters |
|||
| Number of circuits | 40 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

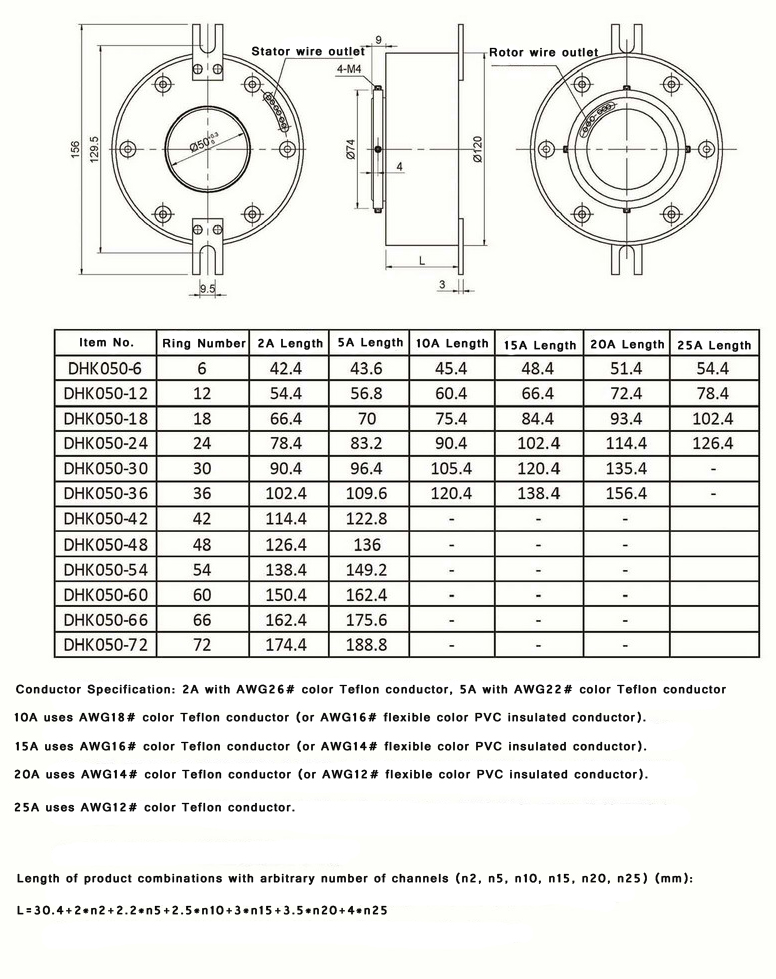

Standard product outline drawing:
Our Advantage:
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers, our factory covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirement.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warranty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
