DHK035-4-1A Ingiant through hole slip ring hole diameter 35mm with 4 channels 1A power widely used for automation equipment

Through Hole Slip Rings – DHK Series

Available for Custom, Standard ID 3-500 mm, Current: 2-1000A

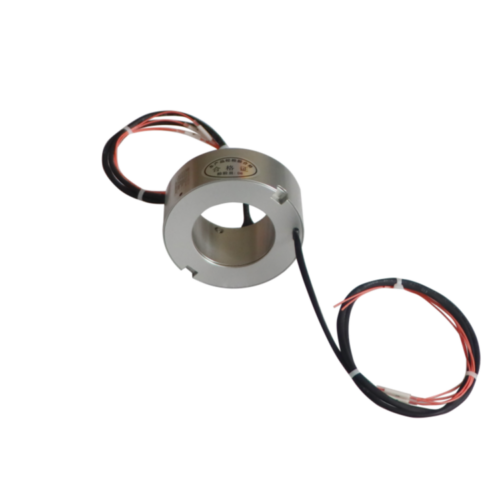

DHK035-4-1A through hole slip ring with an inner hole 35 mm. 4 channels 1A power supply current, voltage 380VAC/24VDC, working voltage can be customized to 1000V; protection level can be customized to IP65/IP68. Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.

Feature

• Can combine the power, data and signals without interference in one rotary system
• Temperature control signal and thermocouple signal can be combined.
• Advanced multi-point contact brush technology ensures reliable contact with low friction
• Metal housing for better protection
• Integrated structure design, easy installation
• Hole size option for 3~500mm
• Standard current option for 0~20A, Standard voltage option for 0~600VAC/VDC
• Rings option for 0~300

Typical application:

•  Automatic machines
•  Cable reels
•  Robotics, rotary sensors, urgent illumination equipment
•  Exhibit / display equipment
•  Packaging
•  Rotary table
•  Medical, Pharmaceutical equipment
•  Converting machines
•  Capping machines
•  Labeling machines
•  Filling machine
•  Machine tools
