DHK012-10-002 Standard through hole slip ring hole diameter 12mm 10 channels maintenance free
DHK012 is a standard through hole slip ring. There is a φ12.7mm through hole at the center of the shaft. The outer diameter of the main body is 53mm. The length is determined according to the number of channels and the current size.
Features
- Compact size;
- Modular design, the number of channels can be customized;
- Signal and power can be transmitted simultaneously;
- Weak signals can be transmitted;
- No maintenance required;
Typical application
- rotating platform
- Packaging Machinery
- cable reel
- Drying and mixing equipment;
- Test Equipment
- Robotics and rotation sensors
- Booth equipment
- medical equipment
|
DHK012-10-002 |
|||
|
The main parameters |
|||
| Number of circuits | 10 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

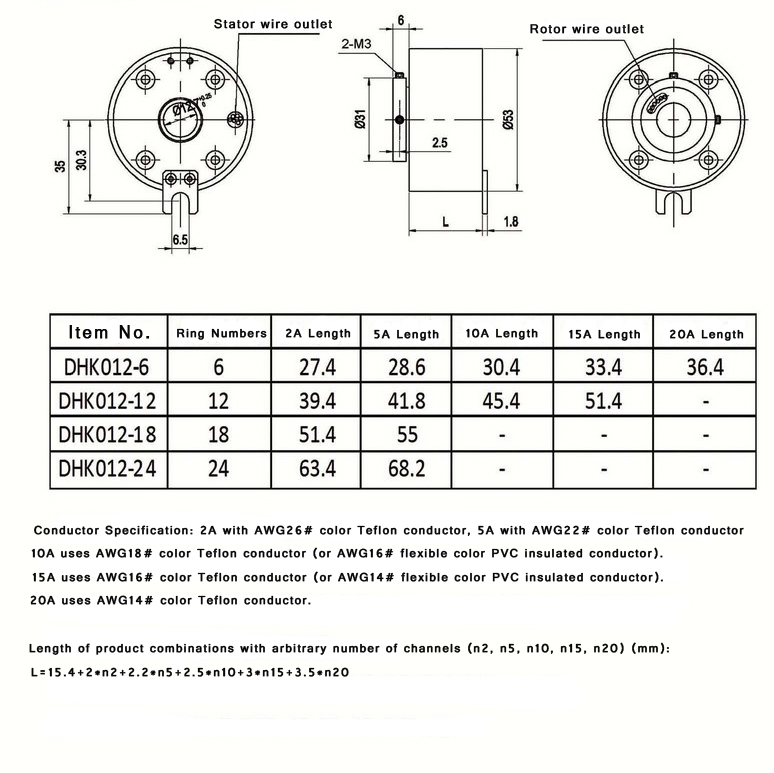

Standard product outline drawing:
Our Advantage
- Product advantage: continuous transmission of power, signals, weak current, high current, high voltage under 360 degree unrestrained rotations. Low torque, low electrical noise, low loss and easy maintenance as the main features.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
