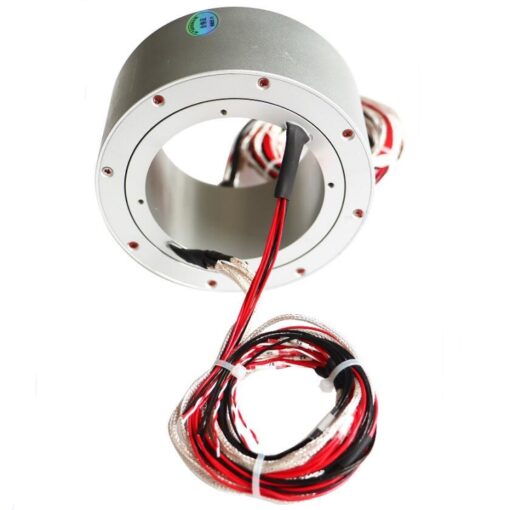

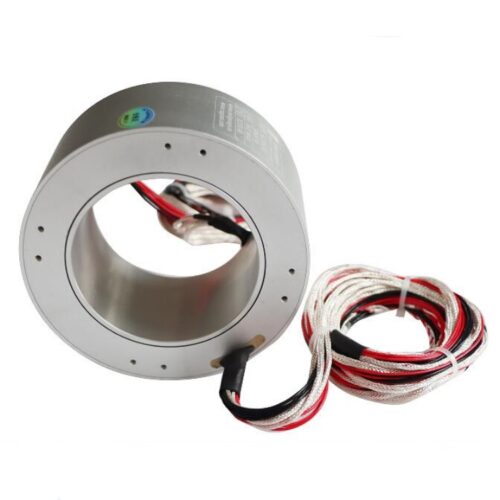

Ingiant DHK083 series custom through hole slip rings bore size 80mm
DHK083 series slip ring are Customized, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.It can provides a 83mm through-bore for routing of hydraulic or pneumatic lines or hydraulic or pneumatic rotating shaft installation, features long life, fiber brush contact technology for ultimate performance in many challenging applications.
Application filed: Our products are widely used in high-end automation equipment and various occasions that require rotating conduction, such as radar, missiles, packaging machinery, wind power generator, turntables, robots, engineering machinery, mining equipment, port machinery and other fields.
|
DHK083-10 |
|||
|
The main parameters |
|||
| Number of circuits | 10 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: Light in weight and compact in size, easy to install. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
