DHK070F-2-10A Through hole waterproof conductive slip ring 70MM 2channels 10A with IP65-IP68 protection grade

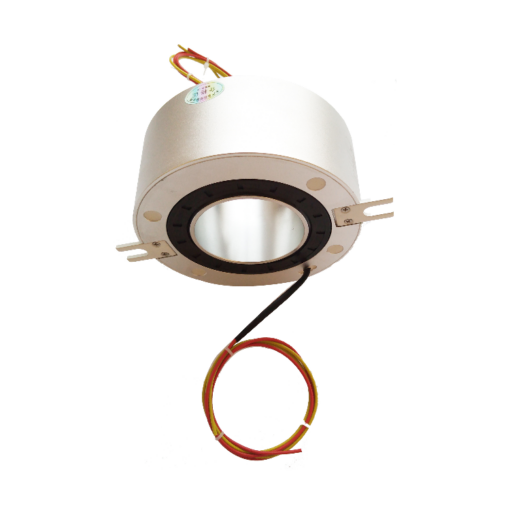

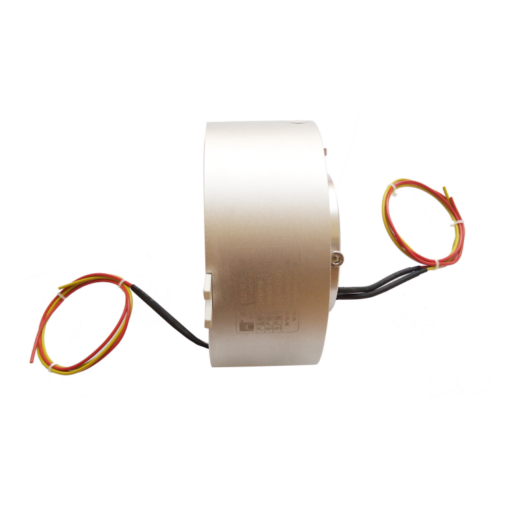

Through hole waterproof conductive slip ring DHK070F-2-10A series
DHK070F-2-10A series waterproof conductive slip ring has IP65-IP68 protection level and is designed for waterproof and dustproof environment. It adopts high-quality precious metal brush wire and patented design structure to effectively reduce interference between circuits and electrical noise, with low torque and long life. The product has an inner diameter of 70mm, an outer diameter of 145mm, and a through-hole appearance structure. The standard type supports 1-48 power rings (0-20A/ring) or 1-96 signal rings (0~5A/ring).
Product features
- Maintenance-free use
- One-piece structural design, easy installation
- Provide standard series products, low procurement cost
- Corrosion-resistant stainless steel shell, suitable for underwater environment
- Multi-contact design, long service life
- Support 1-96 channel circuit or signal (0~20A/channel)
- Up to IP68 protection level
Typical applications
- Use the device in dusty environments
- Use the device in humid environments
- Use the device in underwater environments
|
DHK070F-2-10A |
|||
|
The main parameters |
|||
| Number of circuits | 2 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

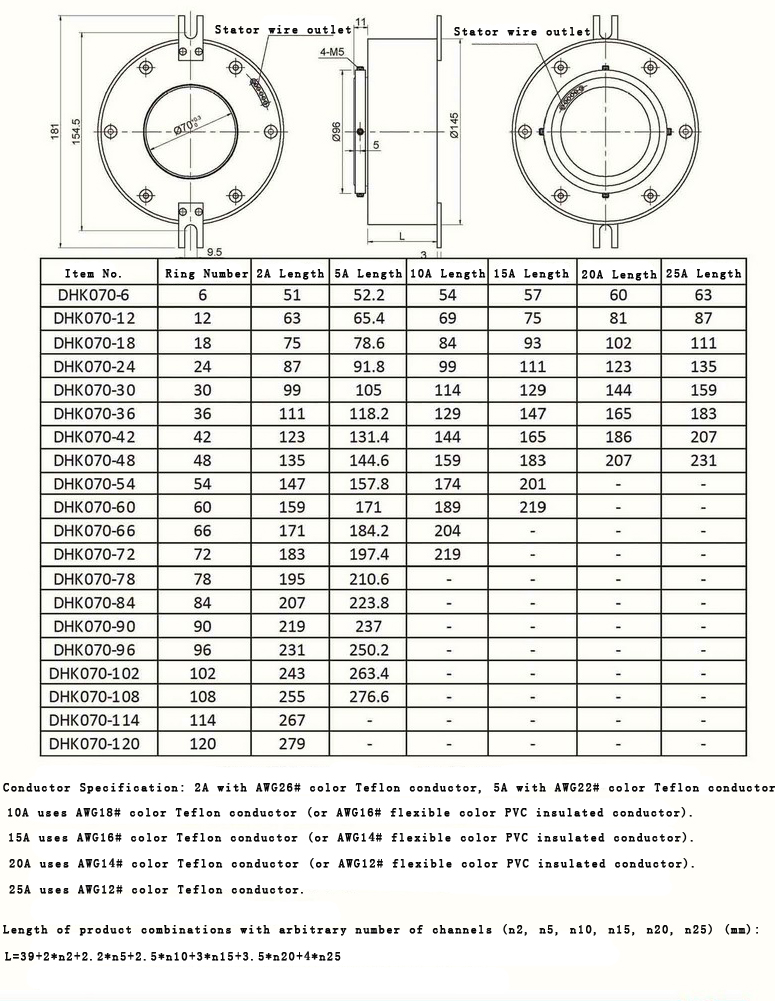

Standard product outline drawing:
Our Advantage
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
