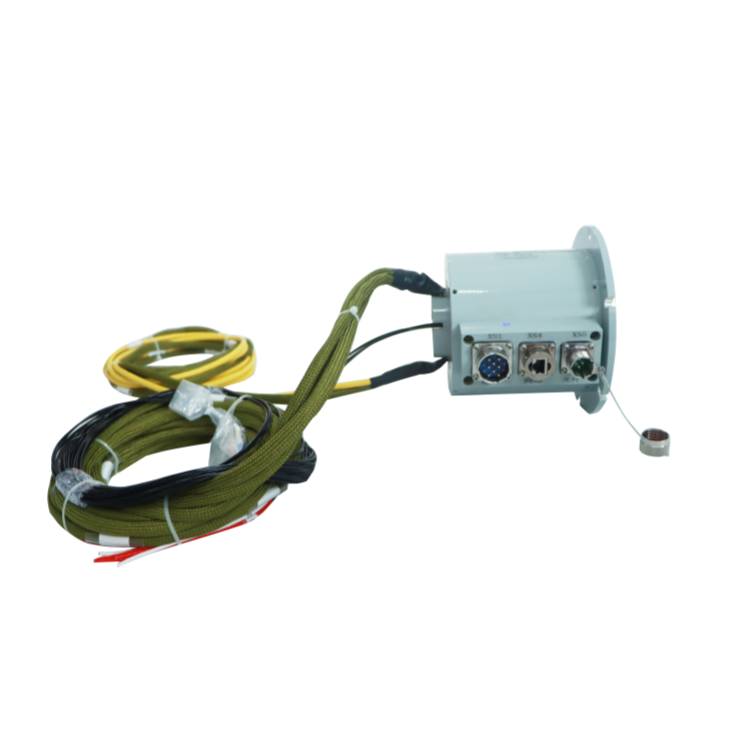

DHS140F-31-4F Non standard customization waterproof optoelectronic rotary joint with 4 channel optical fiber
DHS140F-31-4F series waterproof optoelectronic rotary joint, with 4 channel optical fiber, 31 channel circuit, outer diameter of 140mm, IP65-IP68, supports single mode and multimode, uses optical fiber as data transmission carrier, suitable for harsh environments, and solves the problem of rotary transmission for optical series and optoelectronic systems.
Product features
- Large data transmission capacity and high transmission speed
- Suitable for long-distance transmission
- No packet loss, no electromagnetic interference
- Compact design with light weight
- Applicable to harsh environments
- Ultra long service life
- Protection level: IP65-68
Typical applications
- robot
- Material conveying system
- Rotating turrets on vehicles
- Remote control system
- radar antenna
- Medical system
- Video surveillance system
- Ensuring national or international security systems
- Submarine operation system
|
DHS140F-31-4F |
|||
|
The main parameters |
|||
| Number of circuits | 31 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
