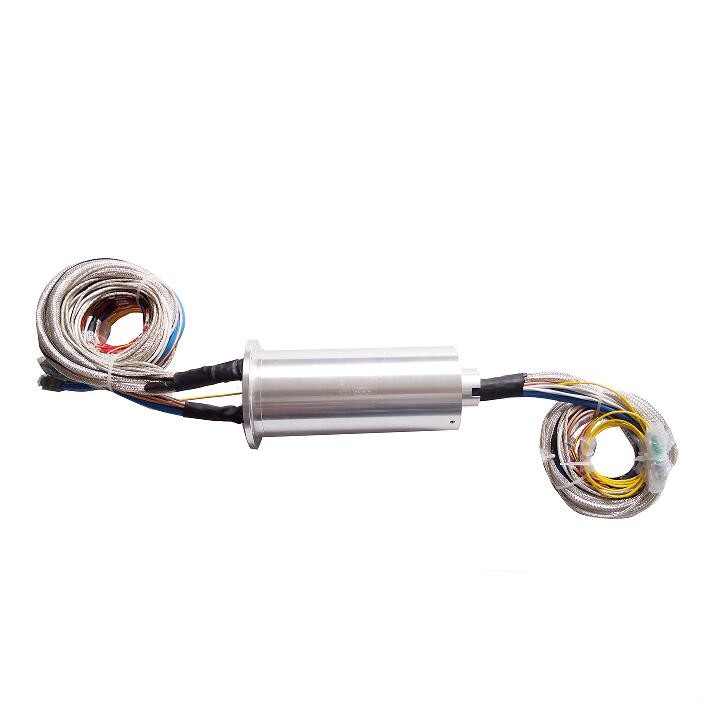

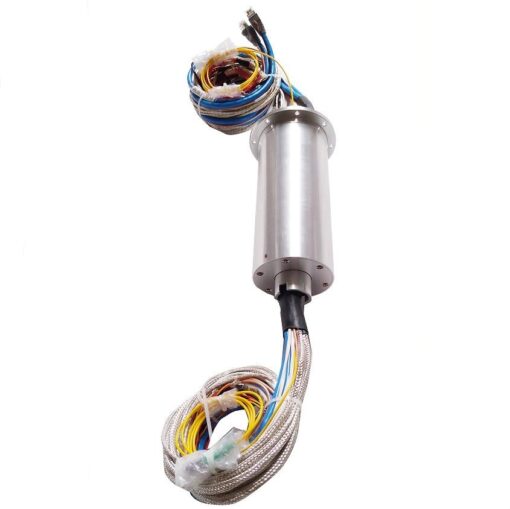

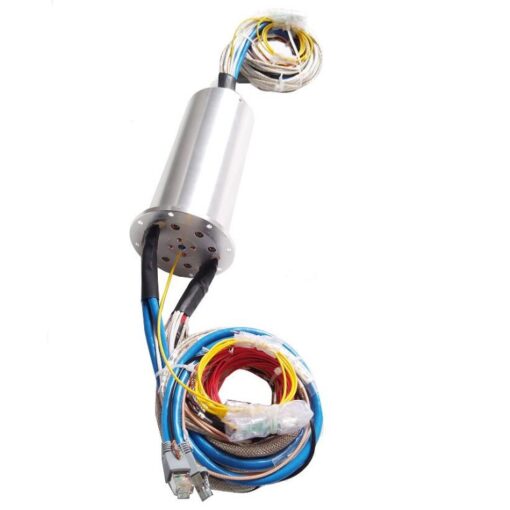

YZKJJMDDHH-491F hybrid slip rings with 1optical fibres combined power, signal and data transmission
Advantages of the hybrid slip rings with fibre optic slip ring
The fibre optic slip ring convinces with its high versatility and reliability. Above all, the throughput of the light signals is guaranteed by this slip ring with consistent precision. With its robust housing, it is adequately protected against most expected adversities.
Inside, gold-gold contacts ensure consistent reliability in the transmission of signal and power current, even during electrical feed-through. In summary, the fibre optic slip ring offers the following advantages:
- Ideal rotary feed-through element for fibre optic cables
- Minimal signal interference at the transition
- Robust aluminium housing in IP51 protection class
- High rotation speed
- Wide temperature range
- Compact design
|
YZKJJMDDHH-491F |
|||
|
The main parameters |
|||
| Number of circuits | 56 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product oueline drawing:
Our advantage:
- Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
- Product advantage : To ensure only the highest quality products, We’ll perform the tests in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
- Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
